Math Slurm Docs (In Devel mode)

Requirements

Confirm with your PI that you have access to Slurm and you will be added to a PI-YEAR account
Confirm that you can ssh to stat.math.mcgill.ca or jump.math.mcgill.ca with your McGill account
Confirm that you have added a SSH key to your account on the systems

Partitions

gpu_h100_pro : 2 x 96GB GPUs (Nvidia H100)
gpu_debug_nvidia : 8 x 11GB GPUs (4 x NVIDIA GeForce GTX 1080 Ti, 4 x NVIDIA GeForce RTX 2080 Ti)
gpu_debug_tesla : 2 x 16GB GPUs (Tesla P100-PCIE-16GB)

Limits

Please use the QOS matching the partition above that you need to use

gpu_h100_pro : 1 GPU, 24CPU, 128GB of RAM and 24 hour jobs
gpu_debug_nvidia : 1 GPU, 2CPU, 16GB of RAM and 1 week jobs
gpu_debug_tesla : 1 GPU, 2CPU, 32GB of RAM and 48 hour jobs

Usage

Use the submit nodes (jump and stat) to submit and cancel your jobs
Modules avilable are different on submit vs gpu nodes
Use the GPU nodes to build your pyhon modules or load the existing minicom modules

Easy HowTo

The following shows how to connect to stat.math.mcgill.ca, load slurm and run a quick batch file on the Tesla GPUs

ssh mcgill-username@stat.math.mcgill.ca - Connect to stat.math.mcgill.ca
module load slurm - Load Slurm module
confirm you know your Account : PI-YEAR
srun -p gpu_debug_tesla -q gpu_debug_tesla -A PI-YEAR --mem=1GB -t 1:00:00 --ntasks=1 --gpus=1 batch.sh - Run your code/commands

Using VScode Remotely with Slurm

Confirm you have met the above requirements

Setup your Math account

ssh to stat.math.mcgill.ca or jump.math.mcgill.ca depending on whether you are on campus/VPN or not.
run the command: vscode-remote-setup

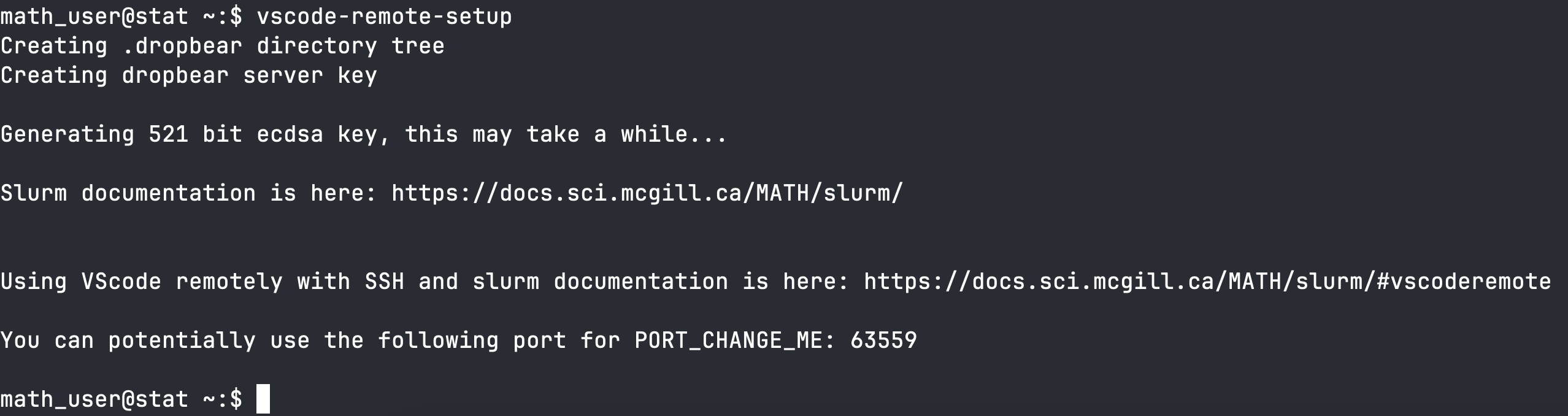

Sample output

Create your own vscode file eg. myvscode.sh (you can copy the contents below and customize )

#!/bin/bash
#
#SBATCH -p gpu_debug_nvidia # partition use only the debug queues for VScode
#SBATCH -c 2 # number of cores
#SBATCH --mem=4G
#SBATCH --gpus=1 # Make sure that number is within what is allowed by the QOS
#SBATCH --propagate=NONE # IMPORTANT for long jobs
#SBATCH -t 0-10:00 # time (D-HH:MM)
#SBATCH -o slurm.%N.%j.out # STDOUT
#SBATCH -e slurm.%N.%j.err # STDERR
#SBATCH --qos=gpu_debug_nvidia # this should match the partition above with -p
#SBATCH --account=PI-YEAR # Ask your TA/PI for which account to use
#SBATCH --signal=B:TERM@60
### store relevant environment variables to a file in the home folder
env | awk -F= '$1~/^(SLURM|CUDA|NVIDIA_)/{print "export "$0}' > ~/.slurm-envvar.bash

module load dropbear # Necessary module to access slrum node

cleanup() {
    echo "Caught signal - removing SLURM env file"
    rm -f ~/.slurm-envvar.bash
}
trap 'cleanup' SIGTERM

### start the dropbear SSH server
# Make sure you change PORT_CHANGE_ME to the port given when you ran vscode-remote-setup
dropbear \
    -r ~/.dropbear/server-key -F -E -w -s -p PORT_CHANGE_ME \
    -P ~/.dropbear/var/run/dropbear.pid

Make sure you updated the following in the above file:

PI-YEAR
PORT_CHANGE_ME (use value from vscode-remote-setup)

Now you are ready to submit your vscode job to enable remote access.

module load slurm - Load Slurm module
submit your job
```
sbatch myvscode.sh
```
Take note of the above job id and run the following to get the NODE_NAME to access with VScode
```
squeue --job Your_Job_ID
```

Setup your VScode machine

From the previous step you will need to know:

McGill_USERNAME
PORT_CHANGE_ME
NODE_NAME

Add the following to your ~/.ssh/config on your client/home machine, modifying the above values in the config

Host jump
    User McGill_USERNAME
    Hostname jump.math.mcgill.ca

Host math-slurm
    HostName NODE_NAME
    ProxyJump jump
    User McGill_USERNAME
    Port PORT_CHANGE_ME

You can now use VScode with the Remote-SSH Extension and select math-slurm as the remote host

Note you might need to enter your SSH passphrase twice if you have not added your ssh key to your agent
Note you will have to accept the ssh key the first time after setting up vscode-remote-setup

If you run into problems please send an email to science.it@mcgill.ca with the subject [SLURM]
