COMP Slurm Docs

Requirements

• Confirm with your Professor or TA that your course has access to Slurm
• Confirm that you have a active Computer Science account
• Confirm that you can ssh to mimi.cs.mcgill.ca with SSH keys from your client machine

Resources

• gpu-teach-01 : 10 x NVIDIA RTX A2000 12GB
• gpu-teach-02 : 10 x NVIDIA RTX A2000 12GB
• gpu-teach-03 :   4 x NVIDIA RTX    5000 32GB
• gpu-grad-01   : 10 x NVIDIA RTX A5000 24GB
• gpu-grad-02   :   8 x NVIDIA RTX A5000 24GB

Limits

(normal QOS, your account default may vary)

• Jobs per user = 2
• Maximum run time = 4 hours
• Maximum CPU cores = 16

Easy HowTo

• ssh cs-username@mimi.cs.mcgill.ca - Connect to a mimi node
• module load slurm - Load Slurm module
• srun -p all --mem=1GB -t 1:00:00 --ntasks=1 batch.sh - Run your code/commands

Info

Check state of the slurm cluster using: sinfo

Advanced Usage

• ssh to mimi.cs.mcgill.ca
• Create your own batch file eg. myfile.sh

  #!/bin/bash
  #
  #SBATCH -p all # partition (queue)
  #SBATCH -c 4 # number of cores
  #SBATCH --mem=4G
  #SBATCH --propagate=NONE # IMPORTANT for long jobs
  #SBATCH -t 0-2:00 # time (D-HH:MM)
  #SBATCH -o slurm.%N.%j.out # STDOUT
  #SBATCH -e slurm.%N.%j.err # STDERR
  #SBATCH --qos=QOS_FOR_COURSE_OR_PI # Ask your TA/PI which QOS to use
  #SBATCH --account=SEMESTER-COURSE # Ask your TA/PI for which account to use
  module load miniconda/miniconda-fall2024 # Load necessary modules
  #add your python runs, etc...

  Check [supported python Modules on the slurm nodes](modules.md)

  * `module load slurm` - Load Slurm module
  * submit your job
  ```sh
  sbatch myfile.sh


Using VScode Remotely with Slurm

• Confirm you have met the above requirements

Setup mimi account

• ssh to mimi.cs.mcgill.ca

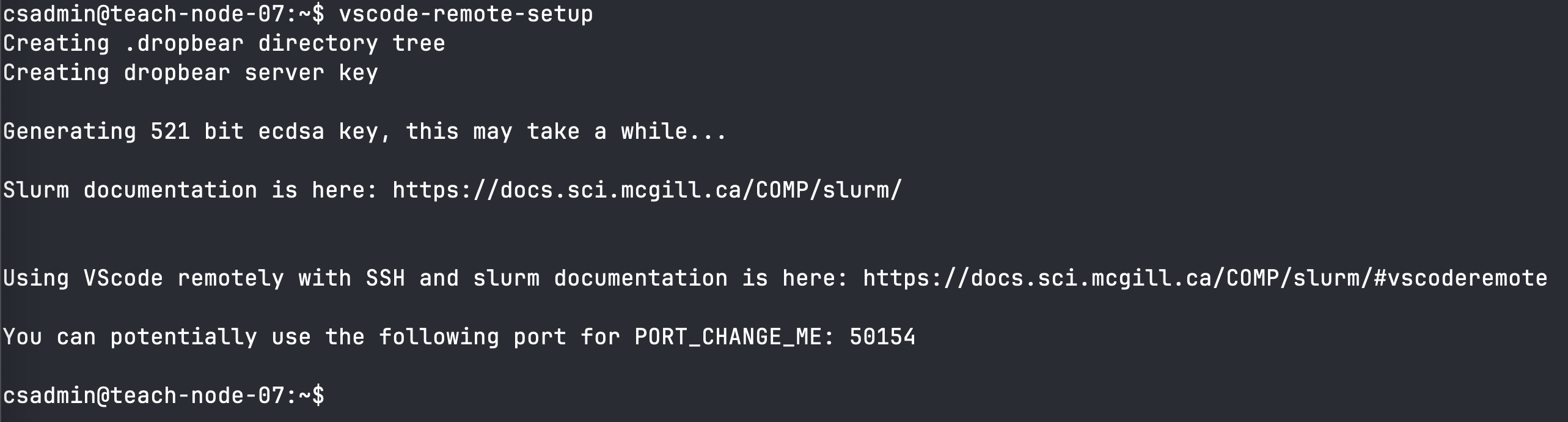

• On mimi run the command: vscode-remote-setup

• Create your own vscode file eg. myvscode.sh (you can copy the contents below and customize )

  #!/bin/bash
  #
  #SBATCH -p all # partition (queue)
  #SBATCH -c 4 # number of cores
  #SBATCH --mem=4G
  #SBATCH --gpus=1 # Make sure that number is within what is allowed by the QOS
  #SBATCH --propagate=NONE # IMPORTANT for long jobs
  #SBATCH -t 0-2:00 # time (D-HH:MM)
  #SBATCH -o slurm.%N.%j.out # STDOUT
  #SBATCH -e slurm.%N.%j.err # STDERR
  #SBATCH --qos=QOS_FOR_COURSE_OR_PI # Ask your TA/PI which QOS to use
  #SBATCH --account=SEMESTER-COURSE # Ask your TA/PI for which account to use
  #SBATCH --signal=B:TERM@60
  ### store relevant environment variables to a file in the home folder
  env | awk -F= '$1~/^(SLURM|CUDA|NVIDIA_)/{print "export "$0}' > ~/.slurm-envvar.bash

  module load dropbear # Necessary module to access slrum node

  cleanup() {
      echo "Caught signal - removing SLURM env file"
      rm -f ~/.slurm-envvar.bash
  }
  trap 'cleanup' SIGTERM

  ### start the dropbear SSH server
  # Make sure you change PORT_CHANGE_ME to the port given when you ran vscode-remote-setup
  dropbear \
      -r ~/.dropbear/server-key -F -E -w -s -p PORT_CHANGE_ME \
      -P ~/.dropbear/var/run/dropbear.pid


Make sure you updated the following in the above file:

• QOS_FOR_COURSE_OR_PI
• SEMESTER-COURSE
• PORT_CHANGE_ME (use value from vscode-remote-setup)

Now you are ready to submit your vscode job to enable remote access.

• module load slurm - Load Slurm module

• submit your job

  sbatch myvscode.sh


• Take note of the above job id and run the following to get the NODE_NAME to access with VScode

  squeue --job Your_Job_ID


Setup your VScode machine

From the previous step you will need to know:

• CS_USERNAME
• PORT_CHANGE_ME
• NODE_NAME

Add the following to your ~/.ssh/config on your client/home machine, modifying the above values in the config

Host mimi
    User CS_USERNAME
    Hostname mimi.cs.mcgill.ca

Host cs-slurm
    HostName NODE_NAME
    ProxyJump mimi
    User CS_USERNAME
    Port PORT_CHANGE_ME

You can now use VScode with the Remote-SSH Extension and select cs-slurm as the remote host

• Note you might need to enter your SSH passphrase twice if you have not added your ssh key to your agent
• Note you will have to accept the ssh key the first time after setting up vscode-remote-setup

If you run into problems please send an email to science.it@mcgill.ca with the subject [SLURM]
